hheader

48 individual calculation programs for the areas of pressure, flow, chemistry, energy, electrics and mechanics

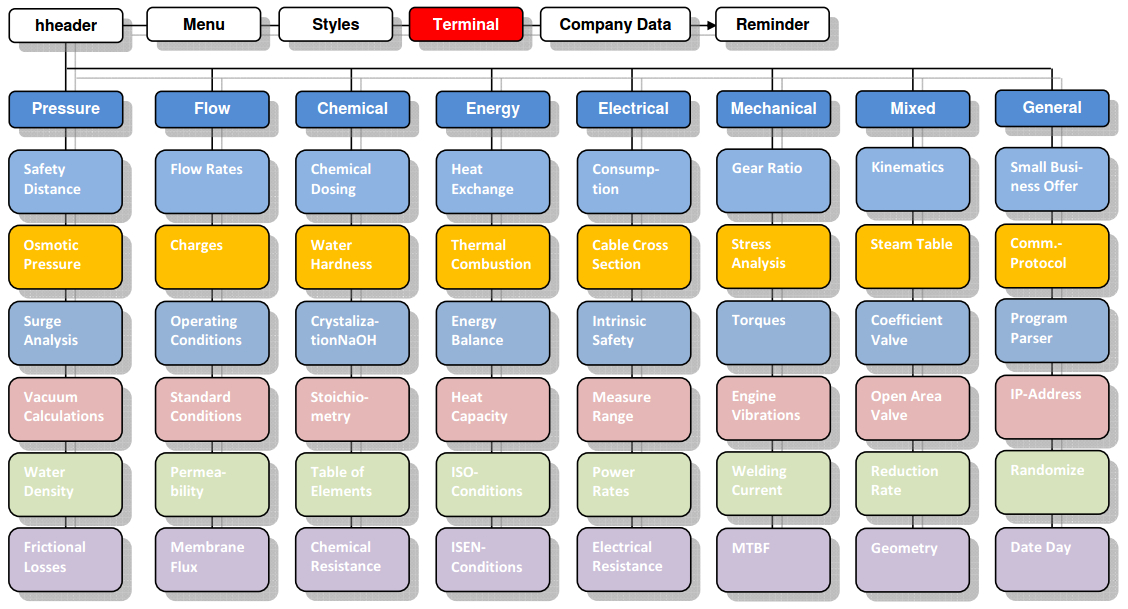

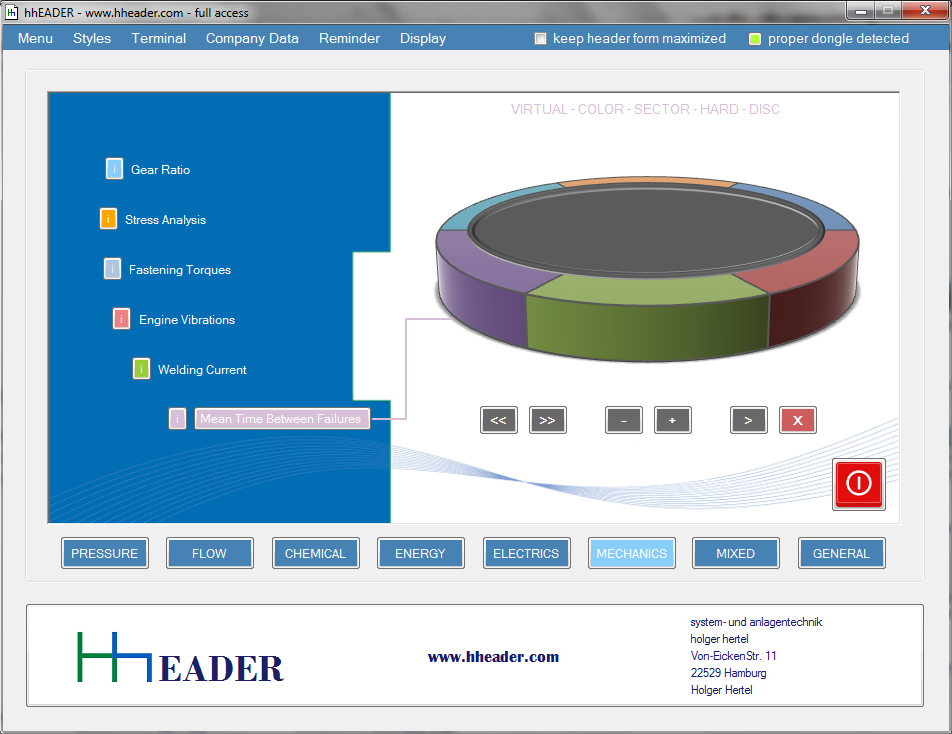

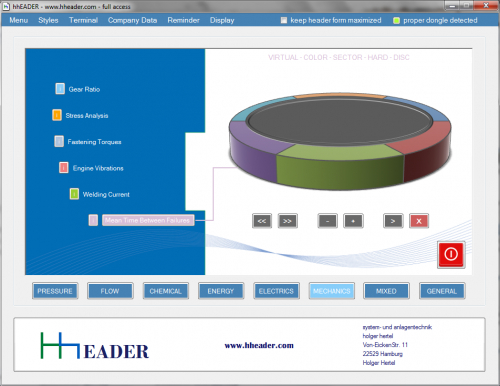

hheader is a collection of 48 individual calculation programs. These 48 programs are divided into 8 different categories, each with 6 independent individual programs.

The program contents have crystallized in more than 15 years of planning and commissioning in the field of water and exhaust air treatment. The calculations and considerations that were repeatedly used, useful and helpful were collected, standardized in small programs, categorized and subordinated to a main menu. In addition to the theoretical principles, practical aspects were also incorporated into the software.

The software serves as a support for the specialist in the consideration and assessment of various contexts.

The complexity of the programs varies greatly. Some of the analyses that the software can perform can be very expensive if they are commissioned from external companies.

Values can be calculated, printed, deleted, commented, loaded and saved. In addition, comprehensive documentation and a wizard are available as instructions for each program. "You can't know everything. You can't remember everything you've learned. You can't have learned everything either. Then you have to read up."

The software is available as an executable file with an associated folder structure. It can only be used to its full extent in conjunction with a hardware dongle. The software can be started and used directly without an installation routine and is therefore portable.

The different categories:

Category 1 - Print

• Safety distance
  Calculates the safety distance that must be maintained from the pressurized system during pressure tests and operation.
• Osmotic pressure
  Basic calculations for osmotic pressure for saline liquids based on the ideal gas law.

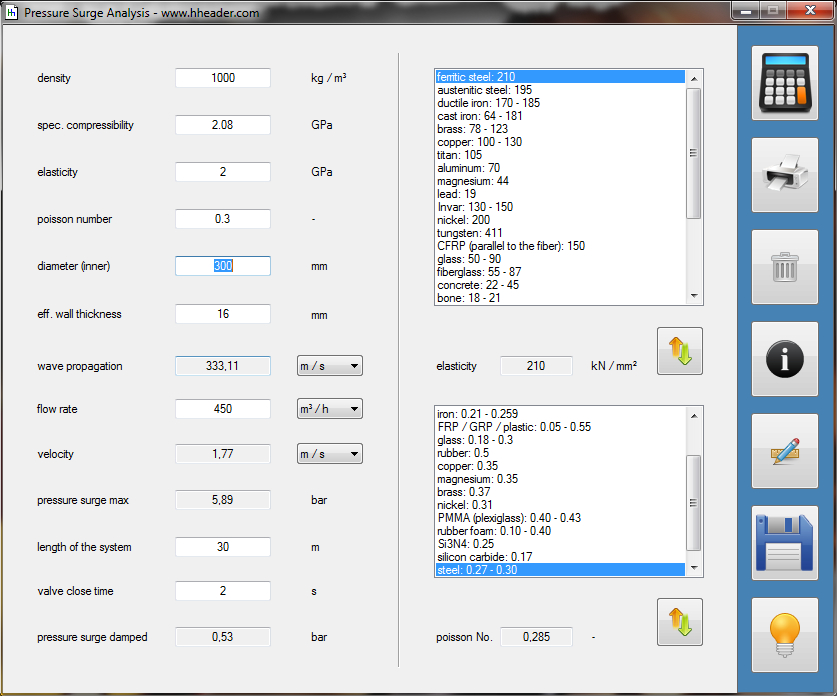

• Pressure surge
  Estimation of the maximum pressure pulse in a pipe system based on pressure surges according to Nikolai Joukowsky, including consideration of valve closing times.
• Negative pressure in the pipe system
  Estimation of the load-bearing capacity of round profile piping under negative pressure.
• Density of water
  Consideration of the relationships between temperature and density of water, as well as the laws governing free flow from a container with definable opening properties.

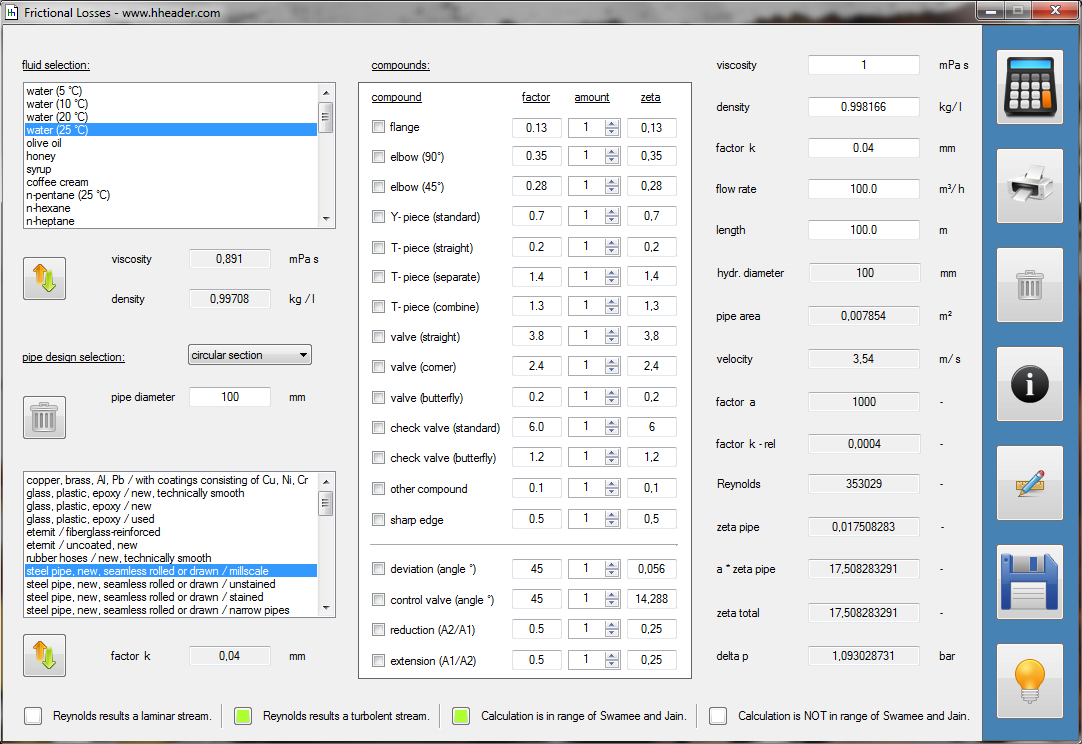

• Pipe friction losses
  Calculates the pressure loss due to pipe friction for round profile piping and rectangular ducts using the Swamee and Jain approximation.

Category 2 - Flow rate

• Flow rate
  Calculations of volume flow, pipe velocity and other parameters for round and arbitrary pipe and container cross-sections
• Loads
  Considerations for accumulation, as well as the service life and residual time of filters at constant load.
• Operating conditions (air)
  Calculates the volume flows (wet and dry) and other parameters (including dew point and condensate formation) for the transition between two different operating points ased on the input values for pressure, temperature and humidity.
• Standard conditions (air)
  Calculates the standard volume flow at 0°C and 1013 mbar for a given operating volume flow (approximation without taking humidity into account).
• Permeability
  General theoretical determination of the permeability of layers and membranes based on given parameters.
• Membrane flux
  Considerations on membrane flux based on the coherent values for volume flow and membrane area.

Category 3 - Chemistry

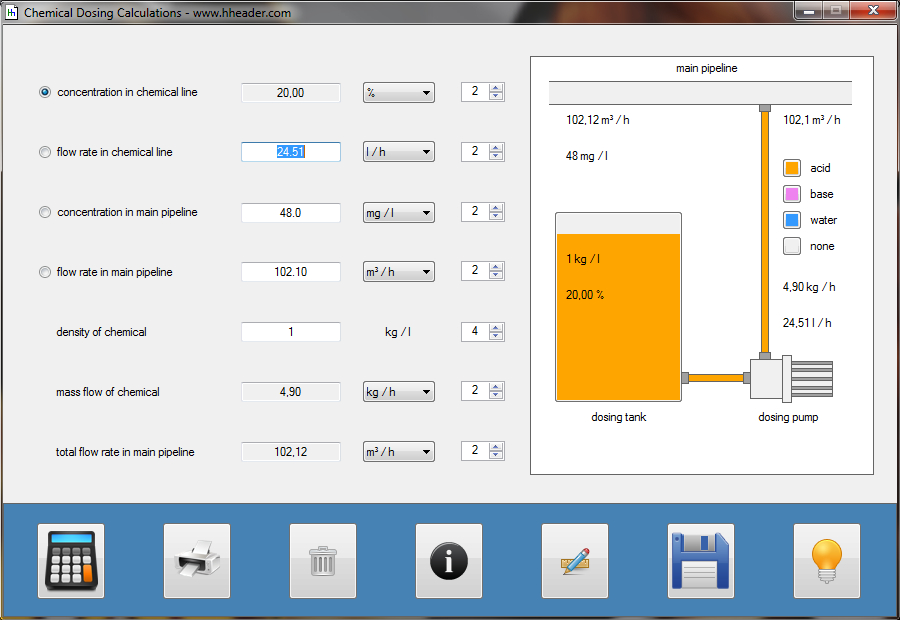

• Chemical dosing
  Used to calculate dosing rates and concentrations in the dosing and main lines.
• Water hardness
  Calculates the water hardness based on the concentrations of the hardness builders calcium and magnesium and converts them into the various international units
• Crystallization diagram NaOH
  Shows the crystallization temperature and the material density for different concentrations of the NaOH solution.
• Stoichiometry
  Reaction equations can be entered. The components and stoichiometry can be checked. The enthalpies of formation are displayed.
• Periodic table of the elements
  It is the usual periodic table of the elements - just for looking things up.

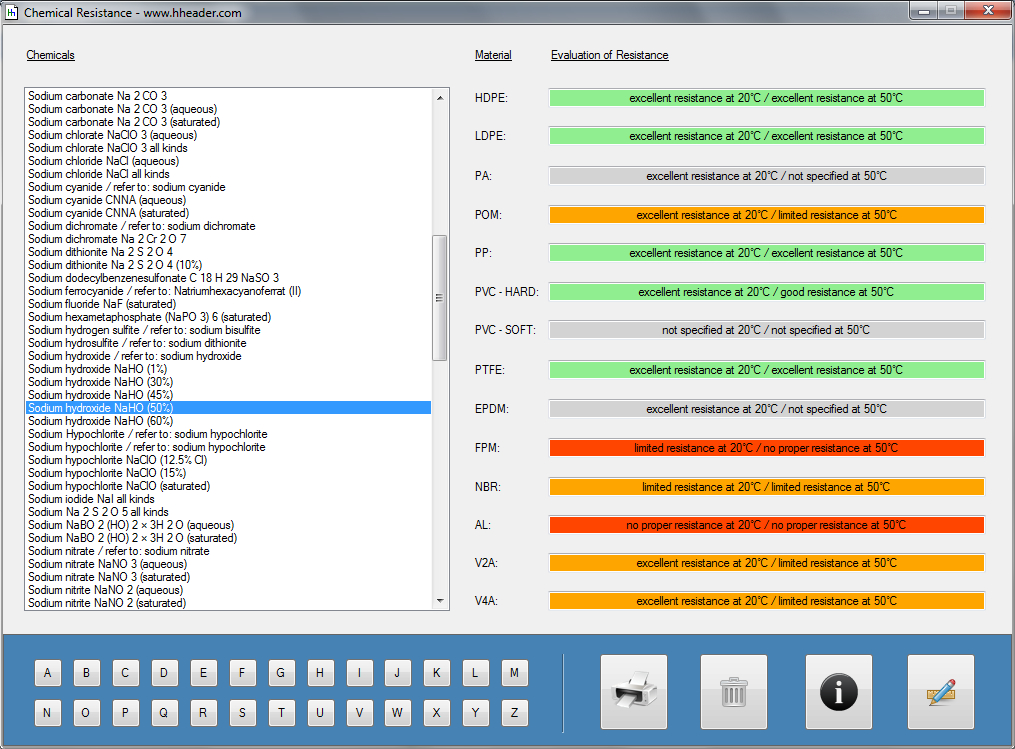

• Chemical resistance
  The resistance to selectable chemicals for 2 different temperature ranges is displayed for various materials.

Category 4 - Energy

• Heat exchange
  General considerations for the heat exchanger based on a heat flow balance. Additional approximations for the exchange surface taking into account the flow direction with constant heat transfer conditions.

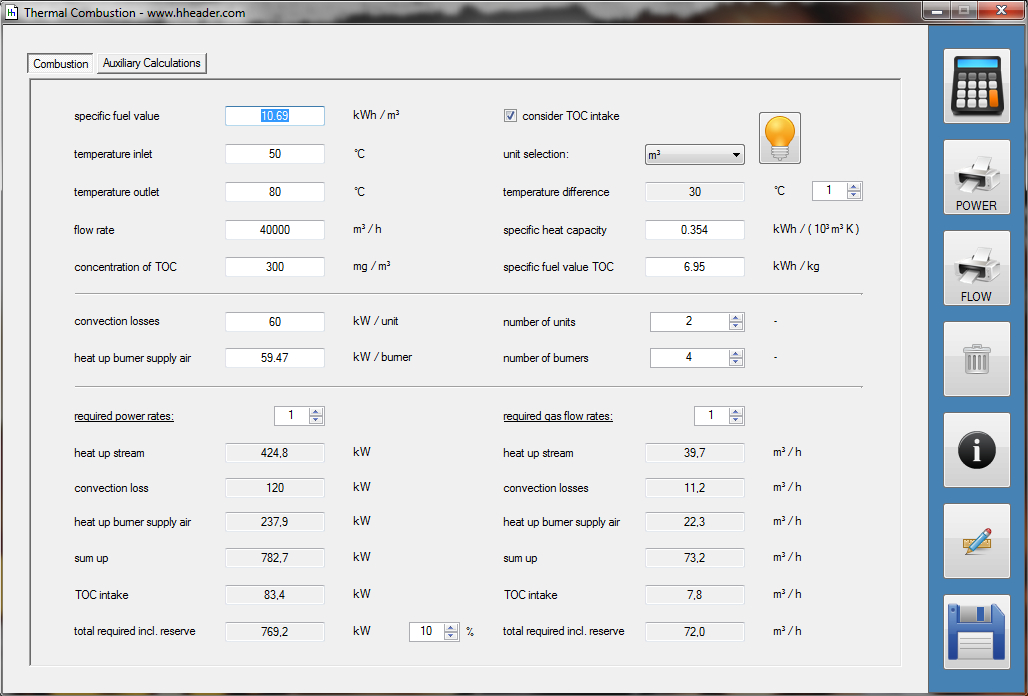

• Thermal oxidation
  Considerations on the requirements of different energy sources for thermal oxidation units using the example of the regenerative thermal oxidation plant (RTO).
• Energy forms
  General theoretical considerations of the different forms of energy - as an illustration and to repeat general basic relationships.
• Heat capacity
  Energy and power considerations for heating processes, taking into account the heat capacity and power losses with constant and area-related coefficients.
• Isotropic change of state
  General theoretical considerations of the relevant values for isochoric, isobaric and isothermal changes of state - to clarify general basic relationships.

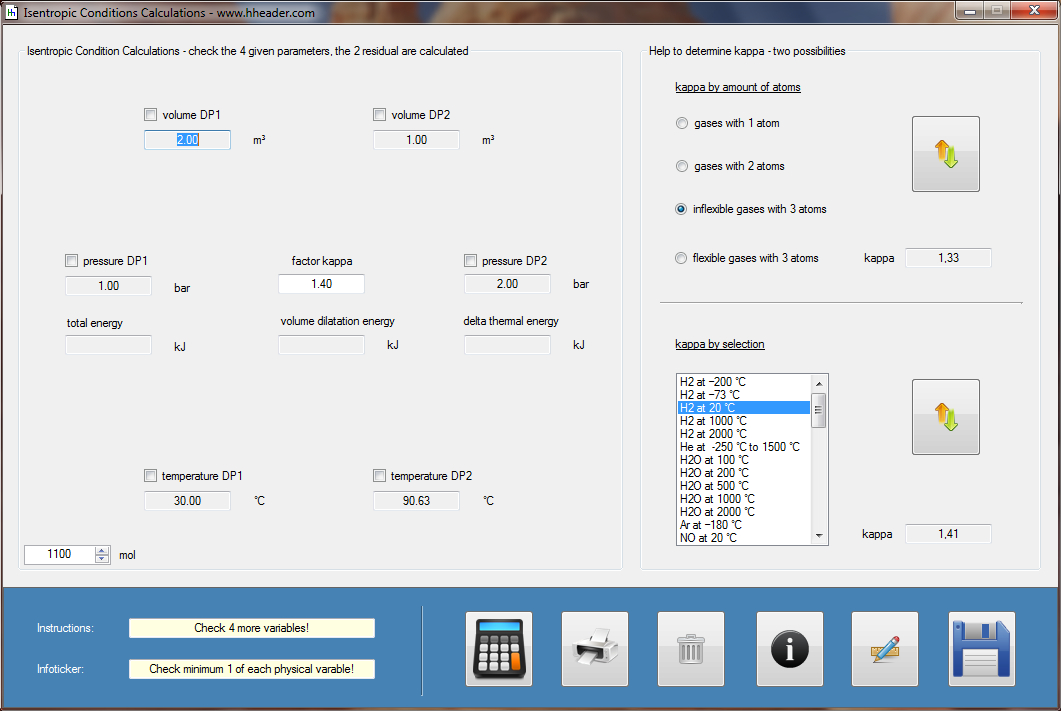

• Isentropic change of state
  General theoretical considerations of the relevant values for isentropic changes of state, taking into account an isentropic exponent - for clarification and repetition of general basic relationships.

Category 5 - Electrics

• Energy consumption
  Calculates the electrical energy consumption from power and time and evaluates the costs.
• Conductor cross-section
  Provides factors for different cable types and installation types and takes into account a voltage drop to determine the conductor cross-section to be used.

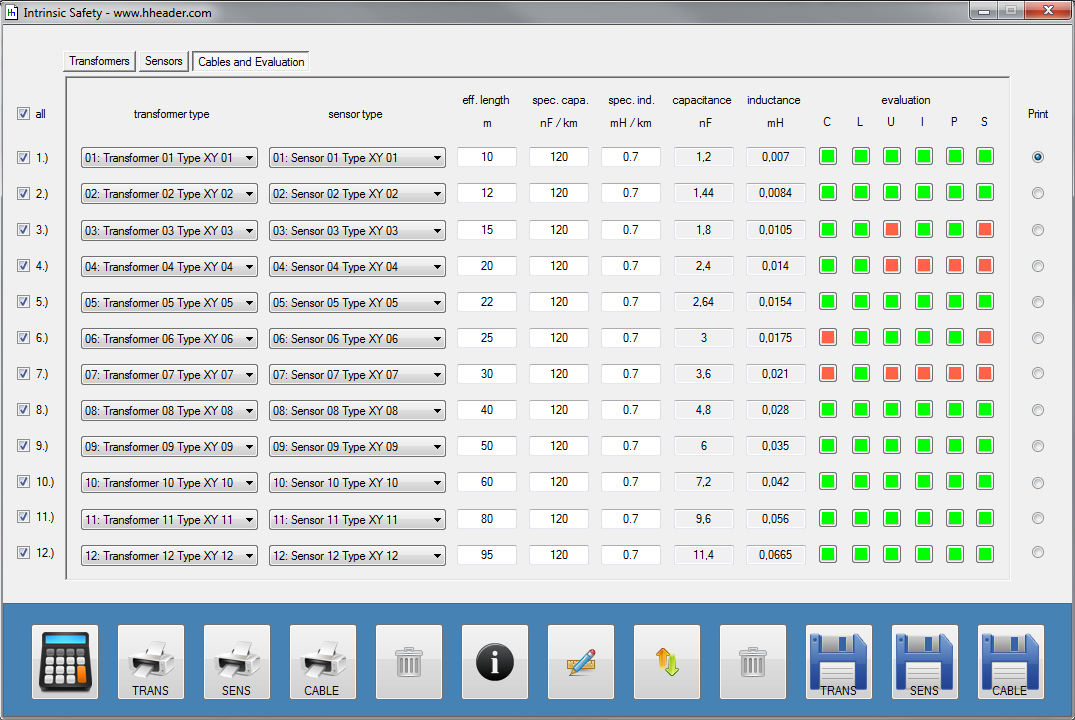

• Intrinsic safety
  Interprets the intrinsic safety for installed measurement technology in relation to the transmitter, sensor and cable.
• Measure Range
  Converts physical process values into corresponding and selectable standard signals (according to DIN IEC 60381-1: 0..20mA, 4..20mA, -5..+5V, 0..5V, 0..10V, 1..5V, 2..10V, -10..+10V)

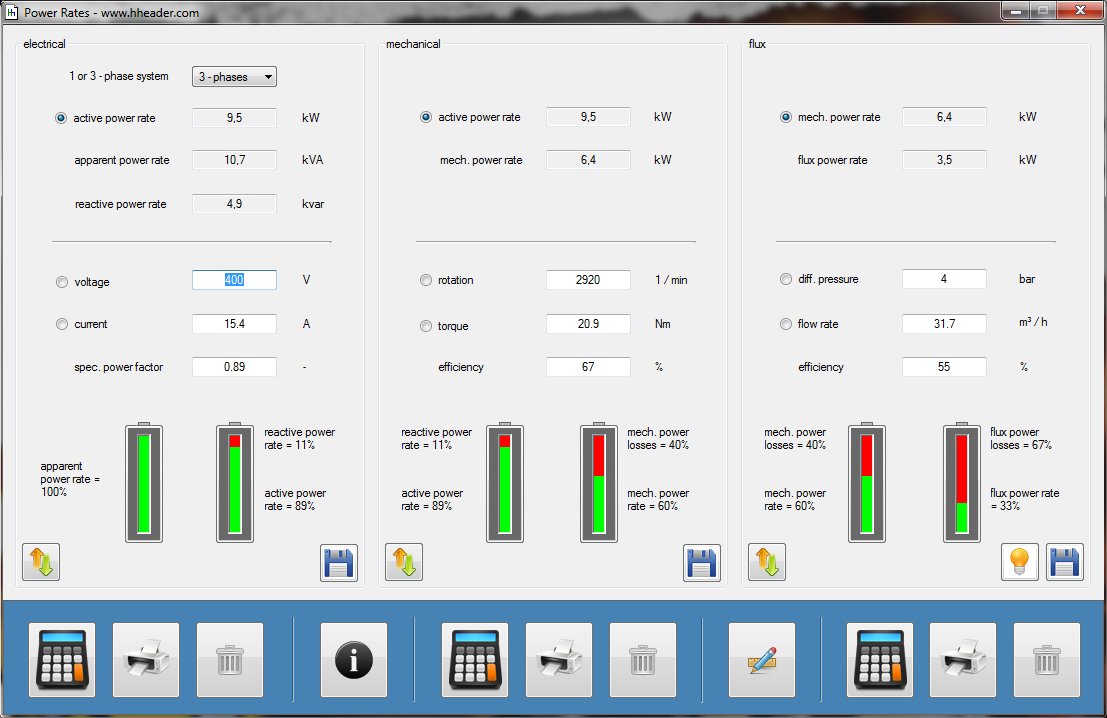

• Power
  Calculates the power from the electrical supply via the mechanical shaft to the material flow, taking into account the individual efficiencies.
• Electrical resistance
  Small collection of practical calculations on electrical resistance - to illustrate and repeat general basic relationships.

Category 6 - Mechanics

• Gear ratio
  Calculations of the transmission ratio of different gearbox types - for clarification and for a rough check in practice (e.g. with rev counter).
• Strength
  Considerations of strength under different loads, additional determination of surface moments of inertia for common profile types - for clarification and for approximate testing in practice.
• Tightening torques
  Provides the specified tightening torques (metric threads) for flange connections and steel constructions (quality µ=0.125).
• Machine vibrations
  Interprets the vibrations measured on machines (unit mm/s) based on VDI 2059.
• Welding currents for electric welding
  Provides tables and information for standard values for electric welding (black steel). Self-determined setting values can be saved and loaded.
• MTBF
  General calculations for Mean Time Between Failures, also the consideration of series and parallel connection of two systems.

Category 7 - Miscellaneous

• Kinematics
  Simple kinematic considerations regarding the relationships between speed, distance, acceleration and time, additional simple relativistic views.
• Steam table
  Relationships between temperature, pressure and the enthalpies for saturated steam, superheated and supercooled steam based on the steam table; two operating points can also be compared.
• Valve coefficient
  General calculations for the KV and KVS value for valves for liquids, gases and steam.
• Projected valve area
  Gives the projected open area as a function of the degree of opening for the closing elements butterfly valve, ball valve and gate valve. It may allow relative conclusions to be drawn about the friction coefficients.

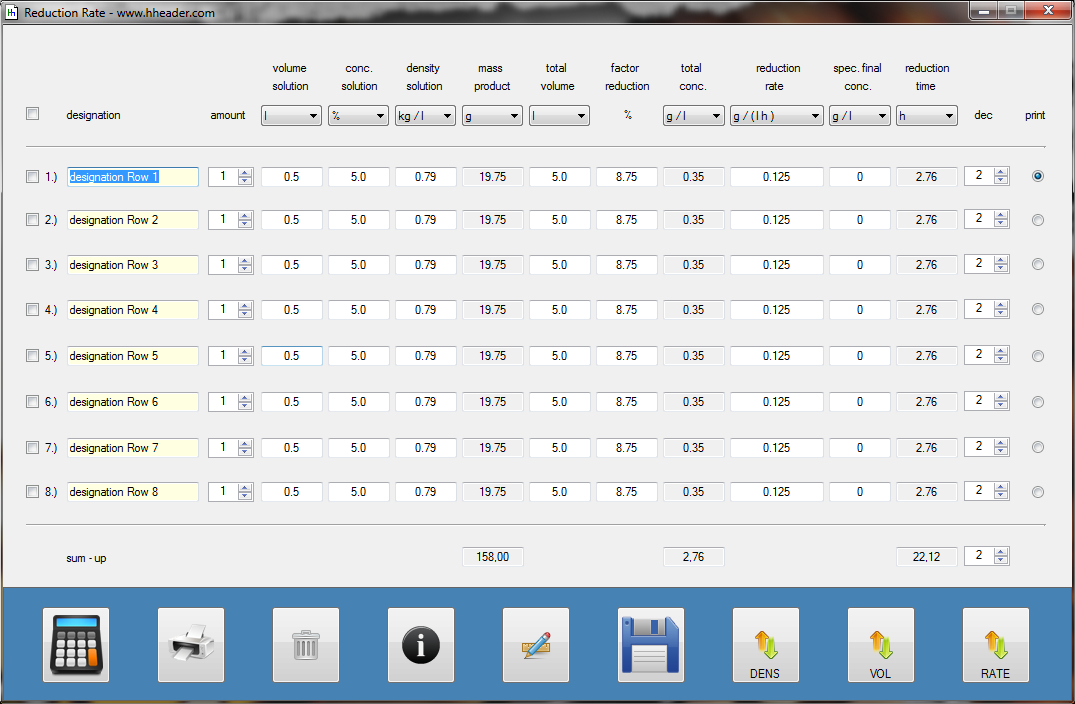

• Degradation rate
  Considerations on the degradation of substances in biological processes.
• Geometry
  Calculations of volumes and areas for various geometric shapes.

Category 8 - General

• Budget calculation
  A simple budget calculation to quickly create a cost overview.
• Commissioning logs
  Generates commissioning reports for measurements, units, valves and other system accessories from an Excel spreadsheet with defined information content.

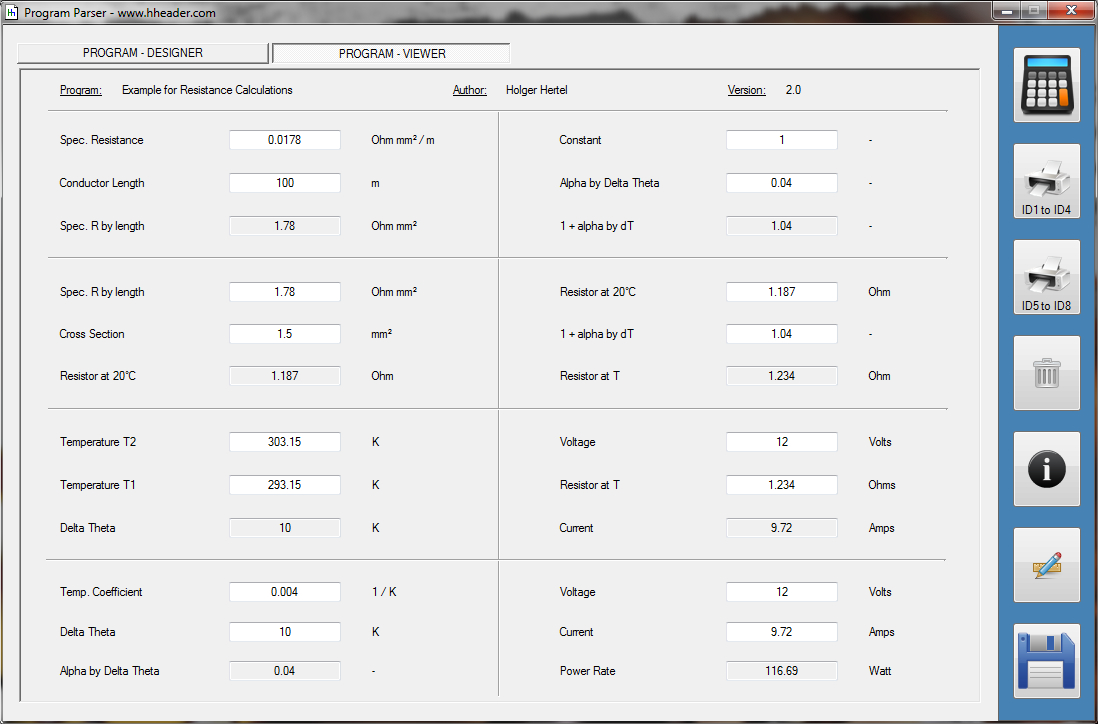

• Program parser
  In a remote sense, a small "program parser" for the user to create their own small calculations (basic operations only).
• IP address
  Easy change of IP address, subnet mask and gateway. The values can be saved and loaded - in case you often have to work at different locations with fixed IP addresses (e.g. programming PLC controls).
• Random generator
  Outputs random numbers - ranges can be set.
• Date and day
  Returns the day of the week and the calendar week based on an entered date.
