ALPI CANECO HT + TCC

Software for calculating and creating circuit diagrams for high-voltage electrical systems

Caneco HT enables the planning and testing of medium and high-voltage systems for three-phase networks of 1000 V and up to 245 kV in accordance with the applicable IEC 60909, NF C 13-200 and IEC 61363 (Marine) standards. Caneco HT calculates the three-phase, common-pole short-circuit currents and enables the protective devices to be set and the cable cross-sections to be determined.

Calculation of electrical equipment, such as:

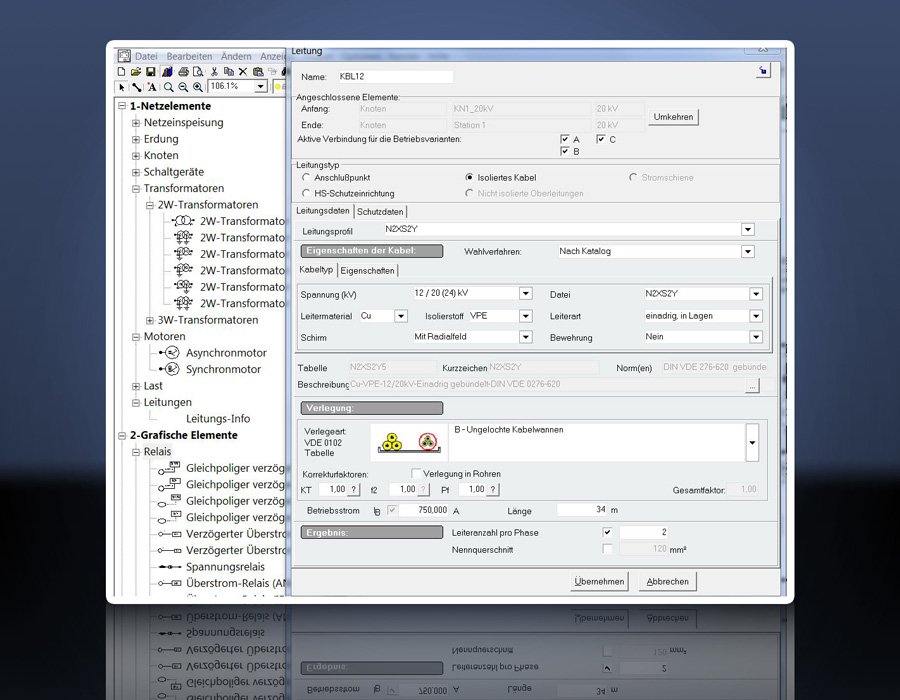

• Cable cross-sections

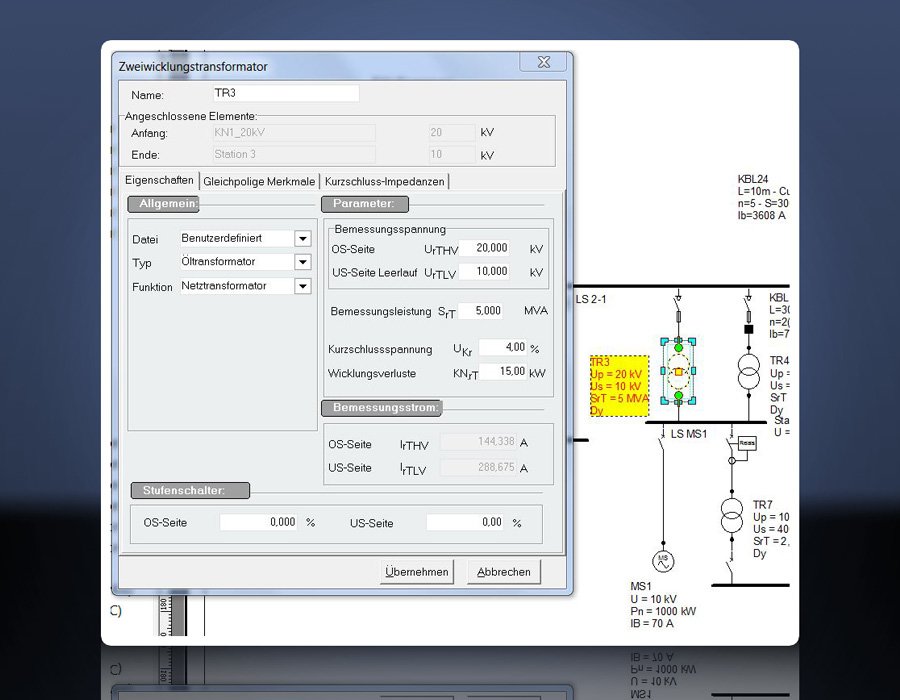

• Setting values of protective devices
• Switchgear and protective relays
• Voltage drop and short-circuit currents

Further functions:

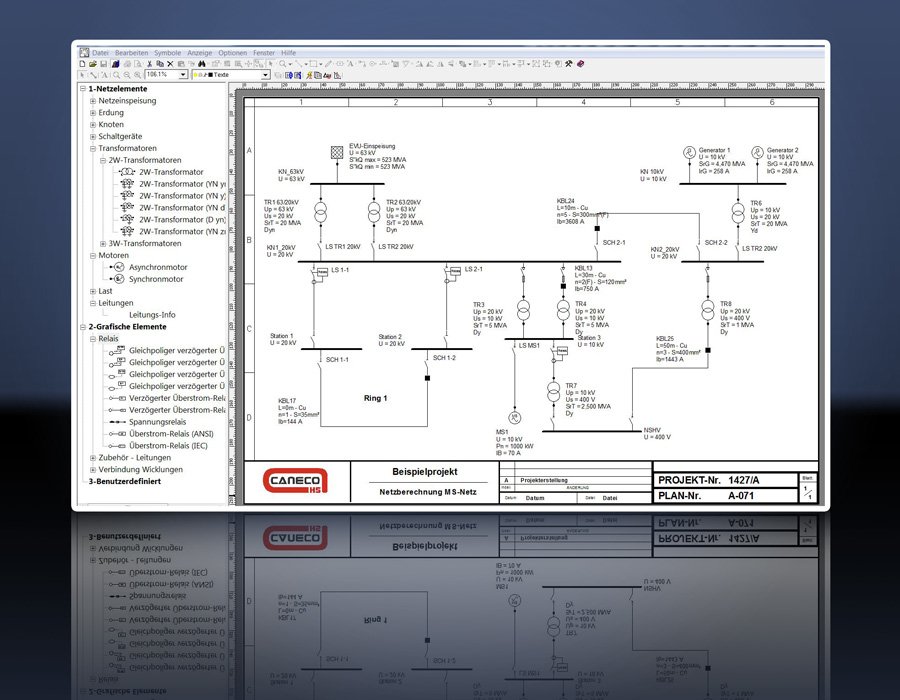

• Free network diagrams with the graphics editor
• Analyze switching states: Determine worst-case scenarios to ensure compliance of the high-voltage grid in all operating configurations
• Check or expand existing systems

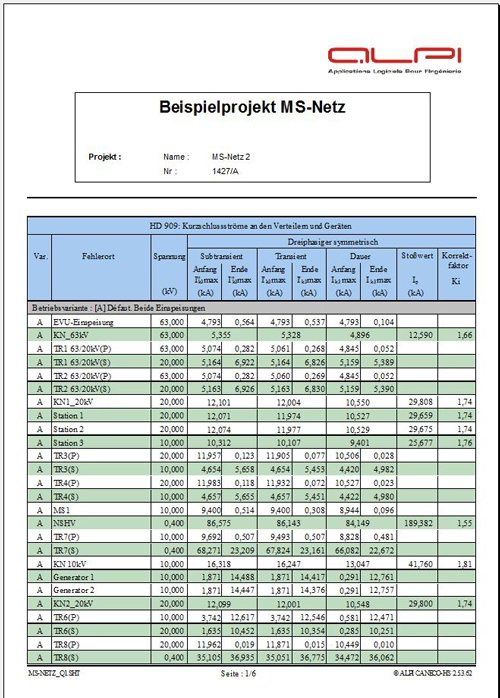

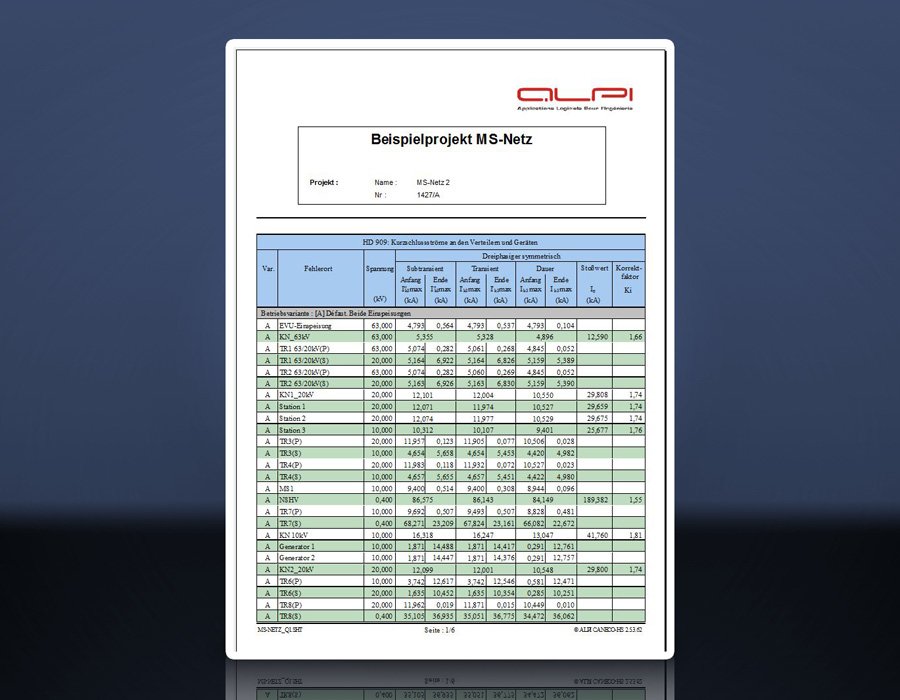

• Automatic creation of documents: Proof of cable and line dimensioning, overview circuit diagrams, calculation results, selectivity curves, etc.

Caneco TCC: Selectivity analysis

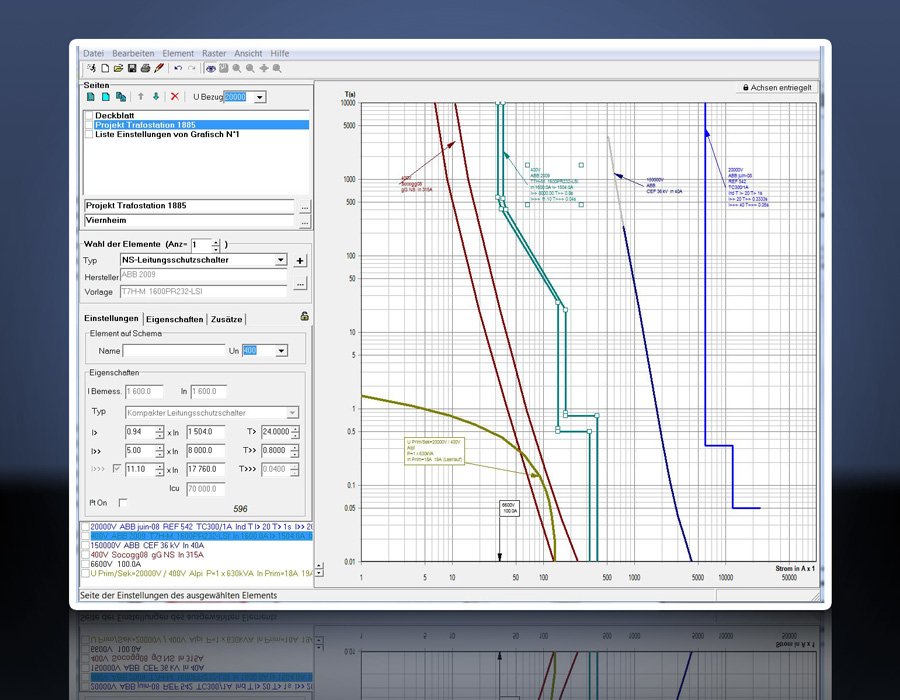

• Project planning of the selectivity of a system by superimposing the time-current curves of the corresponding equipment
• Determining the optimum settings of the protection devices to ensure selectivity
• Diagnosis of the continuity of the installation's power supply by checking the selectivity of the protection plan.
• Printout of the pages with the settings or export of the data to calculation software for implementation.

Your benefit:

• Quality and compliance with standards through standard-compliant design of your project
• Time savings through automatic generation of single-pole circuit diagrams and calculations
• Reduction of errors by avoiding multiple entries
• Also for international use: international standards, available in 7 languages
