AREAPLAN is a 3D planning software for the optimal design of assembly halls

AREAPLAN - Hall planning tool

AREAPLAN is a 3D planning software for the optimal design of assembly halls

Version:  3.7

Demo version

Great projects in tight spaces require great solutions

Do you want to make optimal use of the space in your factory while making your production as efficient as possible? Then AREAPLAN is your indiviDUALIS solution.

  • Better use of space in the factory to increase productivity
  • Transparent site production
  • Simultaneous sequence and layout planning
  • Simultaneous consideration of spatial as well as temporal dimensions
  • Convenient planning of space requirements in dynamic factory layout

Using scarce space more efficiently - manufacturing large products more productively

In scheduling and capacity planning for the on-site assembly of large-volume products, the available assembly area often represents a bottleneck that cannot be neglected. The primary task of space planning is the temporal arrangement of assembly projects in the hall layout, taking into account any restrictions, such as construction height, load-bearing capacity, etc.

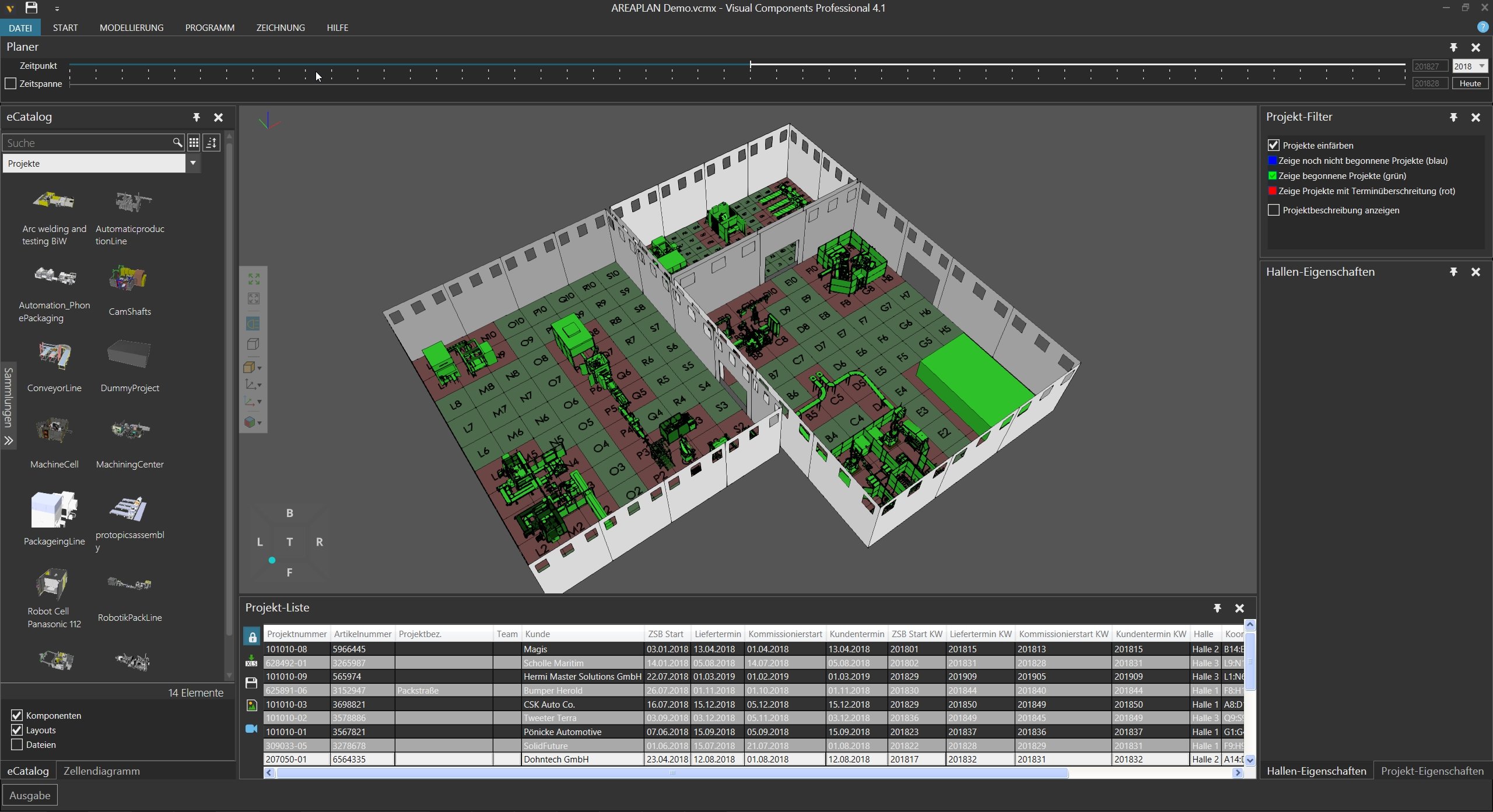

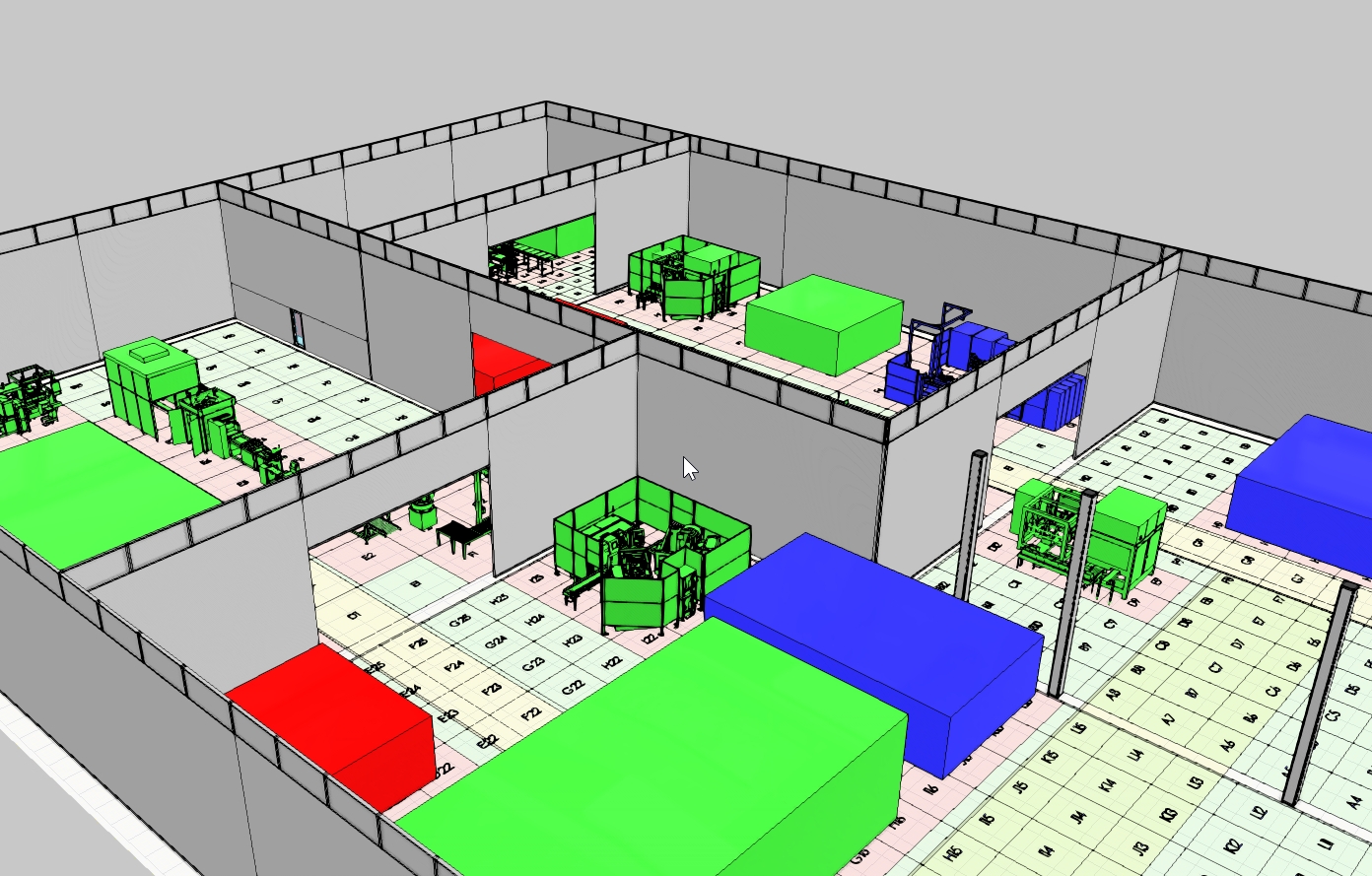

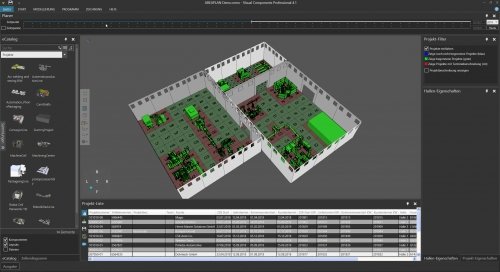

With AREAPLAN, spatial and temporal degrees of freedom can be used effectively. Position projects collision-free on the available operating areas and always get an overview of completed, current and planned projects with the help of the time and project filter. Export the resulting assembly plan as an Excel spreadsheet and communicate the current space allocation across departments via an exported 3D view with project information.

Technical details:

  • CAD import
  • Project filter
  • Project list export as MS Excel spreadsheet
  • Export of hall plan as PDF or .VCAX (Experience)/Multi-device


  • Modeling of the hall layouts
  • Training
  • Integration into the existing IT structure



Target groups:

For whom is AREAPLAN the tool of choice?

Production manager Assembly manager and workshop manager in the field of individual and small series assembly of complex products, the assembly of which is based on the construction site principle.


  • Fill Gesellschaft m.b.H.
Contact information:
Mr. Martin Scholz
Links & Downloads:
direct to webpage
Request online demonstration
request meeting
Success story
direct to webpage
Software exposé
request URL

Functions (excerpt) of AREAPLAN - Hall planning tool:

2D and 3D construction
Analysis functions
Facility planning
Asset management
Asset management
Capacity planning
Forecasting and planning
Scenario comparison


on request

Get to know the software better! Request a video appointment for a personal presentation!

Technical specifications:

SaaS, Cloud:
Multi-user (network-compatible):
Multi-client compatible:
for a fee
possible for a fee
First installation (year):
Manufacturer based in:
for a fee
included in price
Installation support:
included in price
Manual, Online Help, Demo version
Dialogue language(s):
English, German
System requirements:
Compatible operating systems (runs with):
Win 11
Win 10
Win Server
Mainframe based
Unix based
Linux based
Mac OS
Mobile OSs (supports):
Min. memory requirements:
3GB Hard disc
data storage medium:
Flash memory
Other requirements for soft- and hardware:
Minimum requirements - CPU: Intel i5 or comparable processor - 4 GB RAM memory - Graphics driver (latest generation) with integrated HD440 - Graphics display resolution at least 1280 x 1024 - Mouse with three buttons (left, center, right) - Operating system Windows 7 to Windows 10 - 64-bit version Recommended specifications - CPU i7 Intel or comparable processor - 8 GB RAM memory or more - Graphics driver (professional graphics card) such as NvidiaQuadroor AMD FirePROwith at least 2 GB of dedicated memory - Graphics display resolution 1920 x 1080 FullHD - Mouse with three buttons (left, center, right) - Operating system Windows 7 to 10, 64-bit version
