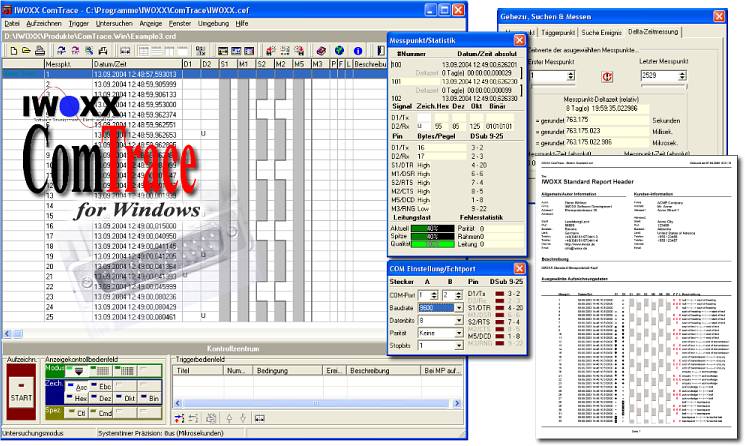

Program Name: IWOXX ComTrace for Windows Version: V.1.0.5.1
RS232/V24 real time analysis of the serial interface for the PC
Program Description:
IWOXX ComTrace for Windows (Keywords: real time analysis, Timestamp, Recording)
The highlights of ComTrace - Realtime Recording - Record your data in realtime with microsecond timestamps
- Multiple start/stop triggers - Decide, whether and when to record. So you can even process unattended recordings (on weekends, holidays or in restricted areas).
- Analyzing & Diagnosting - Make use of the various display and print functions (Multiple display options: ASCII, EBCDIC, HEX, DEZ, OKT, BIN, with or without control lines)
- Portable operation - e.g. Notebook, Laptop
- All adapters inclusive for 9- and 25-PIN RS232/V24 analyzes
- Runs under MS Windows 9x, NT, 2K, XP
|
Real time Recording: ComTrace is multi thread optimized to give you the highest precision and performance for data analysis. In all cases data accuracy is guaranteed through the multi thread event technology of ComTrace.
Timestamp: Your system's high performance counter is able to down size the resolution to microseconds. If your system has no high performance timer, the resolution will be 55 milliseconds or even better. ComTrace checks for the existing timer capabilities at startup.
Triggers: One of the key features of Comtrace is its "Trigger Engine", which will help to trigger (search) for dedicated events on the data or signal lines, errors or time/date events. You can add up to 256 triggers into the Trigger Panel. You can use multiple start/stop triggers in any sequence. So you are able to setup a trigger condition with one or more start/stop conditions for one recording session. These triggers are saved to your own environment file, to use it again any time you want.
Save multiple environments: You can save any amount of environment files to your disk, as they may belong to customer sessions or environments. Load, save and edit your settings! These settings also include the port and record file settings.
Multiple display modes: There are many possibilities to show you the data as you want. Switch to Detailed (vertical), Data Only or Data Dump view. Show characters in USASCII or EBCDIC with or without Control and Command chars, in Hexadecimal, Decimal, Octal or Binary. Drag the columns of the view to get the best result.
"COM setup/Real Port" window This window enables you to setup your COM port and (!) to look at the real status LEDs of the serial interface lines.
"Measure point/Statistics" window This window gives you detailed information about the currently selected measure point, the previous and next measure point, and shows gauges for the line load (actual/peek) and the line quality.
Print report The recorded data and their detailed information can be printed out to a printer of any type (laser, ink jet, PDF writer), you've installed as a windows printer. ComTrace takes care of your settings made in the display options of the "Main Screen" and prints your data as shown! Hardware Support: Any PC with the following conditions...
- CPU: INTEL Pentium or AMD Athlon
- RAM: 256MB or more
- CDROM
- Hard disk
- 2 Standard COM ports
Operating System Support:
- Windows 98, 2K, XP (others may also be functional, but not guaranteed!)
- Extensive use of Unicode technology (The operating system must support this feature!)
Serial Port Interface: 2 x Standard COM ports supporting...
- baud rates: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2000, 2400, 3600, 4800, 7200, 9600, 10400, 14400, 19200, 28800, 38400, 56000, 57600, 115200
- start bits: 1
- parity: none, even, odd, mark space
- stop bits: 1, 1.5, 2
Contents You will find the following parts in the package: - CDROM including program and usermanual in electronic format (PDF & browser compatible) (German or Englisch)
- Optional: User manual in printed format (German or Englisch)
- Adapter cable
- Test line cable
- All adapters for 9 and 25 PIN DSUB interfaces
ComTrace specifications Realtime recording - Asynchronous data recording based on complex measure points
- Timestamp function (up to microseconds precision; depending on the PC model)
- Multiple start and stop triggers for high complexive analyzing conditions
- Max. 115200 bps (bits per second)
- Parity: EVEN,ODD, ALWAYS 1, ALWAYS 0, NONE
- Databits: 5-8 Bit
- Stopbits: 1-2 Bit
- Receive/transmit data: RD/TD (D2/D1)
- Control lines: DTR, DSR, CTS, RTS, RING, DCD (S1, S2, M1, M2, M3, M5)
- Error display: Overrun, frame and parity errors
- Display: Transmit/receive data, data and control lines (selectable)
- Code pages: USASCII, EBCDIC, HEXADECIMAL, DECIMAL, OKTAL, BINARY
- Harddisk recording: Only limited by harddisk space
- Status display: Data traffic and peek level with LED bars
Diagnose - Display of recorded data in various modes (Full vertical/Data only/Data dump)
- Forward/rewind per measure point or page
- Measure points/Statistics window for measurepoint details
Setup: - All interface parameters configurable via COM Setup window
- Unlimited number of environments saveable
Print: - Output to any windows printer
- Output parameters adjustable
- Professional customer reports printable
Documentation and help - Online help (Corresponds as regards content to the complete manual)
- User manual in German or English language and electronic format (PDF and web format) on CDROM with many images and diagrams (Optional user manual in printed format available!)
- Integrated informations for 9 and 25 PIN DSub V24/RS232 interfaces
File management: - Free selection of filenames for recording and environments
Your Advantages - Fastest analyzes
- Highest precision
- Portable operation
- No expensive hardware required
- Lowest PC hardware preferences
- Save investment
Infos and shop at http://www.iwoxx.de/deutsch/index.html und http://www.iwoxx.com/english/index.html ! |
Target groups:
Measuring technique, control engineering, production control, production supervision
References:
A list of companies which already use IWOXX ComTrace: - Ace Electronics Schweden
- Cegelec AT GmbH & Co.KG Deutschland
- Euro Telematic GmbH Deutschland
- Festo AG Deutschland
- Forschungsgesellschaft für angewandte Naturwissenschaften FGAN Deutschland
- GEVAS Software GmbH Deutschland
- JECO SERVICES SA Luxemburg
- Leutek GmbH Deutschland
- MEDISTAR Praxiscomputer GmbH Deutschland
- Meinhardt Städtereinigung GmbH & Co.KG Deutschland
- NSM AG Deutschland
- ODEVIS AG Deutschland
- OPC cardsystems GmbH Deutschland
- Orsys GmbH Deutschland
- PC-Ware Information Technologies AG Deutschland
- planzeit Rhein-Main GmbH Deutschland
- PSI Logistics GmbH Deutschland
- SCA PACKAGING Deutschland Stiftung & CO. Deutschland
- Scarabäus GmbH Deutschland
- Schultes Mikrocomputer Entwicklungs GmbH Deutschland
- Siemens AG Deutschland/Schweiz
- Sonopress GmbH Deutschland
- Stora Enso Maxau GmbH & Co. KG Deutschland
- technotrans AG Deutschland
- Telefonbau Schneider GmbH & Co. Deutschland
- TU Dresden Deutschland
- VOLVO PENTA C.E. Österreich
- Willtek Communications GmbH Deutschland
- Wincor Nixdorf International GmbH Deutschland
Technical statements:
|
| Based on PC |
 Win Vista |
Win XP |
Win 2000 |
 Win NT |
|
| Win ME |
Win 9x |
Netware |
MAC OS |
|
| OS/2 |
DOS |
|
|
|
|
| Based on Unix |
Unix |
Linux |
SCO |
AIX |
|
| HP-UX |
Reliant |
Sinix |
Irix |
|
| Solaris |
True64 |
OpenBSD |
|
|
|
| Based on Mainframe |
Open/VMS |
OS 400 |
BS2000 |
MVS |
|
|
| Based on Handheld / Mobile |
Palm OS |
Windows Mobile |
Symbian |
Blackberry |
|
|
| Based on Online-Appl. |
ASP / SaaS (web based application) |
|
|
| Memory requirements: | RAM: 256 MB, Hard Disk: 1 GB | |
| Network-compatible: | yes | |
| Medium: |
Floppy disk |
CD-ROM |
DVD |
Tape/Band |
Online |
|
Further information: | System Language: | German, English | | Documentation: | Users Manual, Online Help, Demo Version | | Training: | not required |
| Hotline: | included in price |
| Installation Support: | not required |
| Maintenance: | for value |
| | | | Price: | from 389 EUR (326,89 EUR plus 19% VAT) per client (zzgl. Versand und Verpackung) | | | | | Manufacturer based in: | Germany |
